How to Install PE Electrofusion Fittings
0

PE Electrofusion fittings commonly provide leak-tight joints in typical plumbing, gas, and water distribution systems. The fittings contain heating coils, which heat the PE material to fuse the joint when connected to an electrofusion welding machine. Here, you can learn PE electrofusion fitting installation in seven steps.

Tools and Materials Required

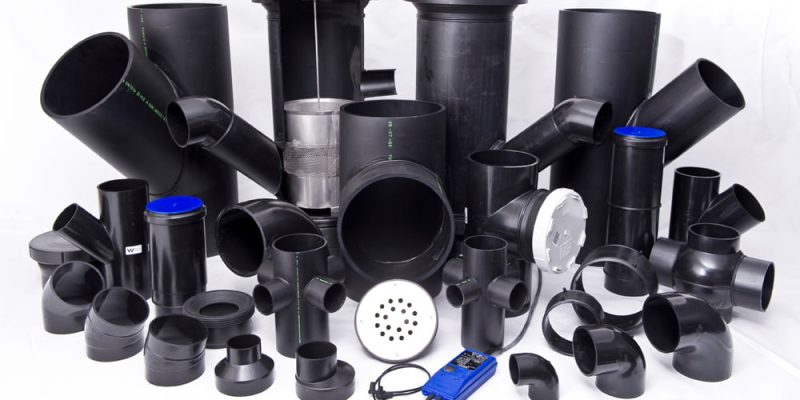

  1. Polyethylene (PE) Electrofusion Fittings Couplers, Elbows, Tees etc
  2. Electrofusion Welding Machine
  3. Cutting Tool for Pipes or Saw (For cutting the PE pipe into appropriate length)
  4. Pipe Scraper (number of times oxide layer from pipe surface)
  5. PE Pipe Alignment Clamp (to hold & align the pipes)
  6. Non-absorbent wipes (used to clean the tube and accessories)
  7. Isopropyl Alcohol (used for cleaning and degreasing)
  8. Marker Pen (to mark the depth of insertion into the pipe for permanent solvent)

Step 1: Prepare the Site and Materials

Ensure that the workspace where you will be working is stable with minimal contaminants to prevent contamination, such as dirt or moisture, which can affect joint quality. Ensure you have everything you need and the pipe surfaces are clean and dry. Here is the answer if you need clarification about How to Install PE Electrofusion Fittings.

Step 2: Cut the Pipe

  • Measure the required length of the PE pipe.
  • Cut the pipe to length with a pipe cutter or saw. Set a square cut so that it will fit evenly.

Step 3: Mark Up the Depth of Insertion

  • Position the PE Electrofusion Fittings next to the end of the pipe toto measure how far it will go inside (this is typically marked on the fitting).
  • Get yourself a Sharpie and mark the depth of insertion on the pipe. This helps you during the fitting and ensures the pipe is inserted all the way.

Step 4: Scrape the Pipe Surface

  • Peel the PE pipe surface of the oxidized layer with a pipe scraper. Scraping must be performed to expose a new PE surface for more effective fusion.
  • Continue scraping around the circumference of the pipe until you reach your insertion depth marker. Do not scrape too much, leading to a thinner pipe wall.
  • Please do not touch the prepared pipe surface after scraping, and avoid bumping into it, as oils and dirt can compromise joint integrity.

Step 5: Clean the Pipe and Fitting

  • Cleaning the prepared pipe surface and inside of the fitting with a lint-free wipe
  • Wipe with isopropyl alcohol (IPA) to remove dust, oil, and other contaminants. Dry the surfaces thoroughly before proceeding.

Step 6: Align and Insert the Pipe into the Fitting

  • Push the pipe into the electrofusion fitting until it reaches its depth-of-insertion mark.
  • Spatial clamps to align the pipe and fitting. Careful alignment is essential for a uniform fusion and a solid joint. If needed, center the pipe in the fitting and modify it.

Step 7: Connect the Electrofusion Welding Machine

  • Ensure the power source is present, and the electrofusion machine operates well.
  • Link the machine terminals to the fitting connectors. The coils are embedded in almost all fittings and get heated when power is passed through them.
  • Find the barcode or settings label of the fitting and enter it into the welding machine for fusion parameters. Scanning the barcode helps in automatic setting for many machines and thus ensures speed and accuracy.

Step 8: Initiate the Electrofusion Process

  • Keep the electrofusion welding machine on, and start the fusing process. The machine will provide an electric current; the coils heat up and melt the inside of the fitting and outside of the pipe.
  • Once the fusion cycle has been completed, the machine will typically beep or indicate visually in some manner. The assembly should not be moved for this process, as movement may result in poor bonding.
  • Leave the joint to cool naturally for at least the time recommended by the relevant fitting manufacturer, and ensure it was not moved during this time.

Step 9: Inspect the Joint

  • When the cooling period is over and finished, examine the joint through sight to ensure it has adequately fused. Search for melted material, which would signify that you fused successfully.
  • If you’ve used alignment clamps, remove them.

Step 10: Conduct a Pressure Test (if necessary)

  • In specific scenarios where gas or water applications exist, pressure testing of the joint is also required to validate integrity. Refer to the fitting manufacturer’s specifications and local regulations.
  • If the test is needed, the pipe system should be connected to a pressure gauge, and the specified pressure level should be applied.
  • Observe for leaks. Recut the joint and replace the fitting as required if leaking is found.

Tips for Success

  • Keep Workspaces Clean: Eliminate moisture, dust, and dirt around the area to be fitted.
  • Adhere to Manufacturer Guidelines: Each electrofusion fitting will typically come with requirements, so always defer to the manufacturer.
  • Precision Matters: Incorrect machine settings can ruin the joint. Be sure that the parameters match fitting requirements.
  • Be Patient: THE pipe needs time to cool down before touching or repositioning. Taken quickly makes the connection tenuous.

These steps will help you understand how to install PE electrofusion fittings and how to make leak-tight connections with PE electrofusion fittings.
